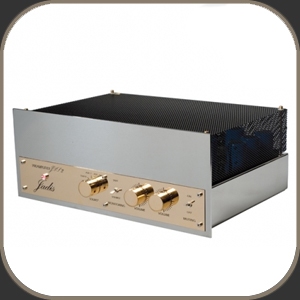

Tube Balanced Line Preamplifier with separate Power Supply

Jadis JPS2S BAL
Jadis JPS2S BAL
Jadis JPS2S BAL
21.000,00 Price include 21% VAT Price exclude VAT € 17.355,37
AVAILABILITY1 MONTH
Description
Available in balanced (JPS2S) or unbalanced (JPS2) version.
The Jadis JPS2 is a line preamplifier which uses 3 ECC83 for the line function plus a ECC82 tube to adapt the impedance on the CD entry. Its specific power supply recreates a voltage for the module with a 80 Hz frequency in order to avoid problems that can occur due to the 50 or 60 Hz frequency from the mains supply.

- The high voltage is regulated by two tubes: 1 x EF86 and 1 x EL84.
- Golden connector and further connections are in copper and silver which assure the faithful broadcast of the audio signal.
- The "point-to-point" wiring  gives to the sound stage plenty of aeration and dimension.
- The choice of the electronic components and the extremely careful fabrication method gives the signature JADIS to this device.

Specifications
- Type: Line preamplifier with separated power supply
- Gain: line 24dB - CD input 18dB
- Input type: 5 line, 2 output, 1 tape monitoring
- Bandwidth: 20Hz to 740kz @-3dB
- Number of blocks: 2
- Tubes list: ECC82 X 1 ECC83 X 3 EF86 X 1 EL84 X 1
- Dimensions: 430 x 345 x 175 mm each
- Weight: 31Kg
- Consumption: 60W

References
Impressively wide soundstage, it feels like pushing the walls, everything becomes clearer, easier. holographic! The build quality is superb and reliability is recognized by all. This preamplifier is clearly a reference among the best.
Haute Fidélité
