Aurender N20

Aurender N20

High Definition Caching Music Streamer Server

Aurender N20
Aurender N20
Aurender N20
Aurender N20
Aurender N20
Aurender N20
Aurender N20
Aurender N20
13.900,00 Price include 21% VAT Price exclude VAT € 11.487,60
AVAILABILITY1 MONTH

Features

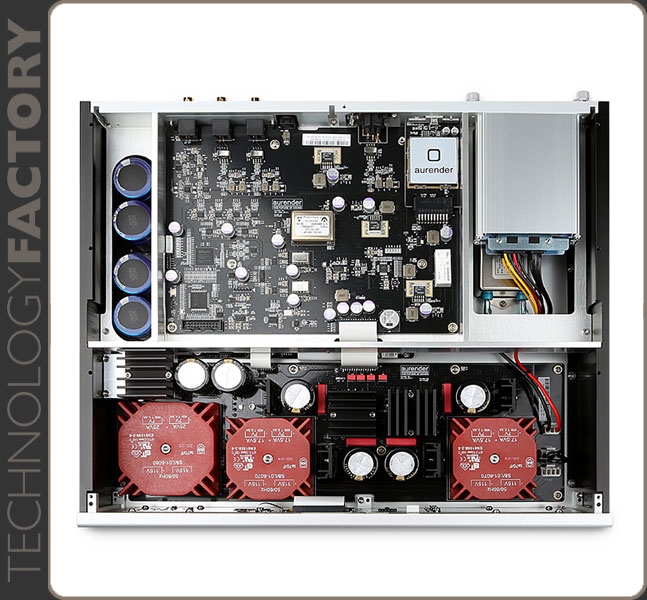

  • The brand new linear power supply for N20 utilizes 2 transformers, 4 cores for digital audio output part, large audio-grade capacitors, and isolated grounding! It is extremely sophisticated and dead quiet! A power supply this good contributes immediately audible improvements to any audio component.
  • Grounding for the SPDIF outputs is now isolated by a separate transformer for an even lower noise floor on AES/EBU, Coax RCA & BNC compared to N10.
  • All new circuit boards populated with higher precision OCXO clock and oscillator exhibiting 4 to 10 times more stability (frequency stability vs. load) than the N10. Musicality, timing, pace and rhythm are greatly enhanced.
  • Like A30, ACS10 and ACS100, the N20 features a built-in super capacitor-based uninterruptible power supply. This prevents disc and operating system corruption in the event of an abrupt power outage by safely shutting down the system.
  • A word clock input facilitates syncing N20 with an external word clock.
  • N20 features a full color 8.8” 1980 x 480 wide screen as found on A30. The chassis size is just slightly taller than the N10 giving it a more substantial appearance.
  • The N20 is supplied without hard drives installed. As with N100SC and ACS100, hard drives are the customer’s choice. Each of the two rear panel mounting sleds accommodates a 1, 2,4 or 8TB 2.5 inch SSD or up to 4TB 15mm height 2.5inch HDDs. Since users have different storage requirements, we feel this is the best way to satisfy everyone.
  • Next-generation USB Audio Class 2.0 Module designed with an emphasis on lowering jitter and lowest possible latency.
  • Like the W20SE and ACS10, the N20 uses a double isolated LAN port for filter out router induced noise.
  • Double the DRAM (8GB) of the N10 providing ample system resource for added features in the future
  • Improved and higher capacity SSD for caching. Upgraded to 500GB M2 NVME. N10 uses a 2.5” 240GB SATA.
  • Available in silver or black finish.

Specifications
- CPU Intel Quad Core
- Front Panel Display 8.8" 1920 x 480 WIDE IPS COLOR LCD
- SSD for System and Cache 500GB M.2 NVME
- DRAM 8GB
- Content Storage: No Storage installed. Two slots for 2.5inch, 15mm/7mm HDD/SSDs
- SPDIF Digital Audio Outputs:  x RCA Coax 1 x BNC (75Ω) 1 x TOSLINK up to 24-bit / 192 kHz AES/EBU x 1
- Precision DSD to PCM conversion on SPDIF Output: Up to DSD512 to 88.2/176.4kHz
- WORD CLOCK in:YES
- SPDIF Output Isolation: Isolated By Separate Transformer core Full Linear
- Power Supply: USB Audio Type Module Type
- Data USB 2 x USB 3.0 (Rear)
- Dedicated Audio USB Port 1 x USB AUDIO Class 2.0
- USB Audio Output Specification- PCM Up to 768kHz DSD : DoP - Up to DSD256
- Native - Up to DSD512
- Main Clock Accuracy: OCXO Based Precision Jitter Reducing
- Clock Generator Frequency stability: +/-5x10-9
- Ethernet 1 x Double-Isolated Gigabit Ethernet
- Internal UPS for safe shutdown Super Capacitor Based
- Power Transformer: 1(50W) for CPU, 2(35W,4 cores) for Digital Audio Output
- Dimensions(WHD) and Weight 430 x 111x 353 mm / 13.5 kg


>
