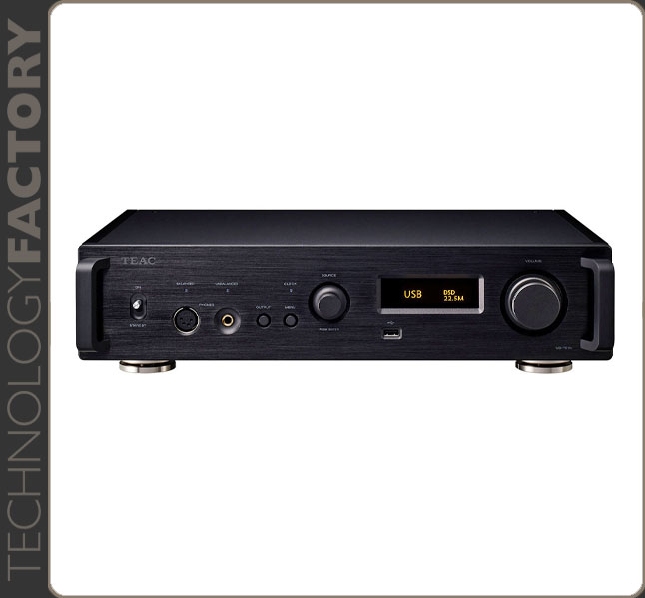

TEAC UD-701N

Network DAC Pre-Amplifier

3.699,00 Price include 21% VAT Price exclude VAT € 3.057,02

AVAILABILITY: 1 WEEK

FINISH

Quantity

Newly-developed TEAC ΔΣ (Delta Sigma) discrete DAC

Instead of using a generic DAC IC, we incorporated a newly-developed TEAC ΔΣ (Delta Sigma) discrete DAC comprised of discrete circuitry that uses FPGA incorporating our original algorithms. Analog signals are output with high audio quality. DSD signals are transmitted as is, while PCM signals are transmitted after passing through a ΔΣ modulator and conversion to 1-bit signals.

We can say that achieving this wide, perfectly clear sound field, which can be realized specifically because of the discrete design, is TEAC reaching the pinnacle of its sound objectives.

With the TEAC ΔΣ discrete DAC, playback of 22.5MHz DSD and 384kHz/32-bit PCM is possible.

Dual mono structure

We have incorporated an extravagant dual mono structure throughout the unit, from the power circuit with independent left and right toroidal core transformers to the D/A converter section and analog output stage.

This dual model structure, which has complete mono circuits for each of the two channels, prevents interference between the left and right channels, enabling the realization of rich musical expression that reproduces the sense of space and dimension.

Features

- Newly-developed TEAC ΔΣ (Delta Sigma) discrete DAC

- Dual mono, fully-balanced circuit structure realizes outstanding channel separation

- Playback of 22.5MHz DSD and 384kHz/32-bit PCM is possible as a USB DAC and network player

- Preamp function with four digital inputs and two pairs of RCA/XLR line inputs

- 4-pin XLR headphone amplifier that can be switched between balanced and active ground

- MQA full decoder function that also supports digital inputs of CD Player

- Upconversion to 2/4/8× sampling frequencies using RDOT-NEO

- Bluetooth receiver supports LDAC, aptX™ HD, and other high-resolution codecs

- Conforms to OpenHome standards and supports Roon Ready

- Supports Spotify Connect, Tidal, Qobuz, and TuneIn (Internet radio)

- Unique TEAC-HCLD2 enhanced-current output buffer circuits

- Analog preamp circuits with high resolution using TEAC-QVCS

>
