Pro-Ject 6-perspeX SB

Highend turntable with 9“ Evo tonearm

€ 2.199,00 Price include 21% VAT Price exclude VAT € 1.817,36

AVAILABILITY: 1 WEEK

CARTRIDGE

Quantity

6 Perspex SB: The ultimate subchassis turntable for the 21st century

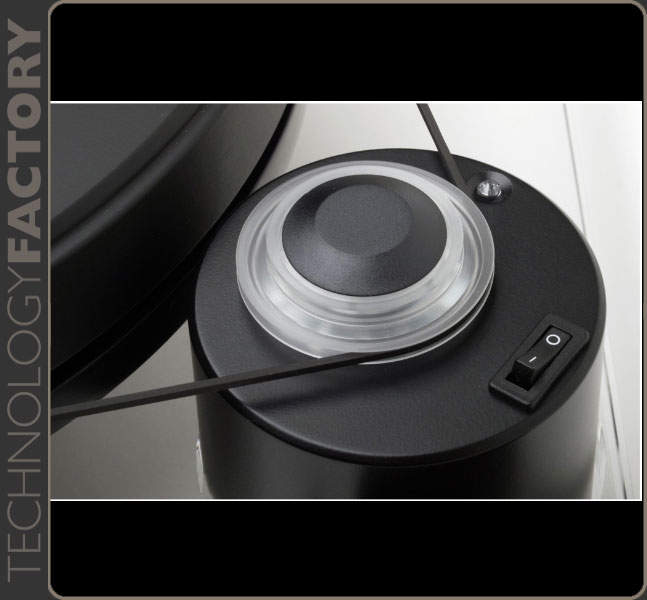

The transparent acrylic plinth stands on three individually height-adjustable TPE-damped aluminium cones and carries the motor and the sub-chassis. The sub-chassis, made of Corian, rests on three magnetic fields. A magnetic subchassis suspension system avoids parasitic noise normally caused by conventional spring mechanism. A supplied spirit level allows easy adjustment of the sub-chassis. A quiet running AC motor unit drives the platter‘s outside edge via a belt. It does incorporate an advanced DC-driven motor control, that ensures perfect speed stability and electronic speed change. The resonance-optimised platter is a sandwich construction utilising a fine-balanced medium density fibre platter and a 4mm thick flat-ground layer of vinyl and a screw-down metal record clamp. It runs on an inverted bearing with stainless-steel axle carrying a ceramic ball/plate bearing. The headshell and armtube of highend tonearm 9cc Evolution are fashioned from a single

piece of carbon-fibre. A conical armtube avoids standing wave reflections. Inverted tonearm bearing comprises four hardened stainless tips in ABEC 7 spec ballraces. Supplied counterweights are suitable for cartridges weighing between 5 - 7,5g / 7 - 10g / 9 - 11g or 10 - 14g. A top-grade connection cable Pro-Ject Connect it E

iwith RCA connectors is supplied (123cm). A dust cover is included. conical decoupling feetcarbon fibre tonearm: Non-resonant tube with low friction bearings freestanding engine

Features

- Acrylic plinth

- Sub-chassis made from Corian with magnetic suspension

- Acoustically inert sandwich construction of platter with combination of MDF and vinyl layer as mat

- Inverted main bearing with ceramic ball/plate

- Belt drive with AC motor with DC driven AC generator

- Electronic speed control with 33/45 rpm switching

- Pre-mounted 9“ tonearm 9 cc Evolution

- Tonearm bearings with ABEC 7 ballraces

- Connect it Phono E cable with RCA plugs

Specifications

- Speed: 33, 45 (electronic speed change)

- Drive principle: belt drive

- Platter: MDF/vinyl Sandwich (300mm diameter)

- Mains bearing: inverted stainless steel with ceramic ball/plate

- Wow & flutter: +/-0,1%

- Speed drift: +/-0,06%

- Signal to noise: 73dB

- Tonearm: 9” cc EVO (Carbon)

- Effective arm length: 230 mm

- Effective arm mass: 8,0 g

- Overhang: 18mm

- Tracking force: 10 - 35mN

- Supplied counterweights: 5 - 7,5gr / 7 - 10gr / 9 - 11gr / 10 - 14gr

- External power supply: 15 volts DC / 800mA

- Power connection: 110/120 or 230/240 Volt - 50 or 60 Hz

- Power consumption: 6 watts max / < 0,3 watts standby

- Dimensions: 460 x 183 x 365mm (WxHxD)

- Weight: 11,0 kg net
