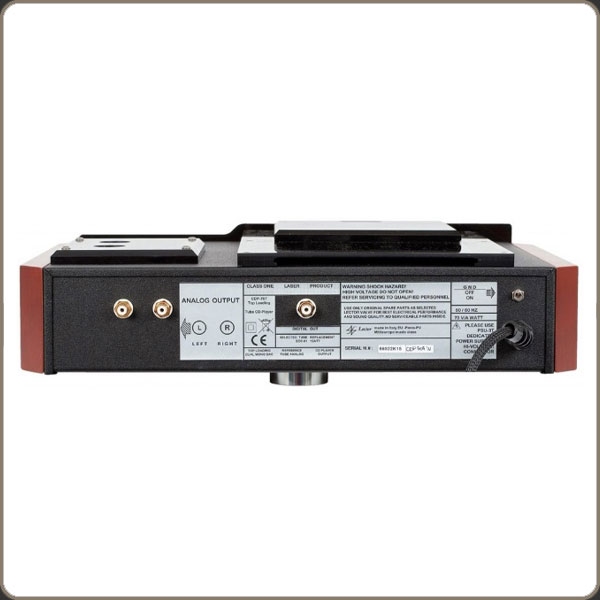

Lector Audio CDP-707 / PSU-707

All tube real CD-player with seperate Power Supply

€ 5.745,00 Price include 21% VAT Price exclude VAT € 4.747,93

AVAILABILITY: 1 MONTH

Quantity

CDP-707

- New laser cd mechanism as great readibility > 3 mm error

- Stable special rubber suspension for reduce internally/external vibration

- New servo circuits based on 32 bit powerfull microprocessor

- New hi perfomances digital filter selectable 4 x or 8 x oversampling / low taps and hi taps selector filter

- New functions as: numeric pads for direct track calling, display off/on by remote control handset, variable brightness of display

- The DAC board is always based on two PCM-1704 R2R digital to analog converter

- Pure class A real tubes output without any solid state device on signal path

- Only one capacitor on signal path as custom made film & foil

- Several power supply circuits for all electronic section with great capacitors reserve

- Large display for long distance simple readibility

- Magnetic “puck” with three neodinium magnet

- Two external power supply : PSU-3T basic and super power supply model PSU-7T

- Selected very low noise tubes as 12AT7/ECC-81 ( 2 )

- Chassis made from extruded aereonautic alluminium

Specifications

- Active devices DAC PCM1704 filter DF1706 / 12AT7-ECC81 tubes

- Frequency response linearity 20-20Khz +/- 1 db correct phase + output

- Distorsion / residual jitter < 0.1 % THD / < 20 ps

- Power supply 230 Vac / 120 Vac / 100 vac 50/60 hz 70 V/A

- Dimension/weight 430 mm (L) 300 mm (D) 100 (H) 12 Kg

- Certification CE-EMC / LVD

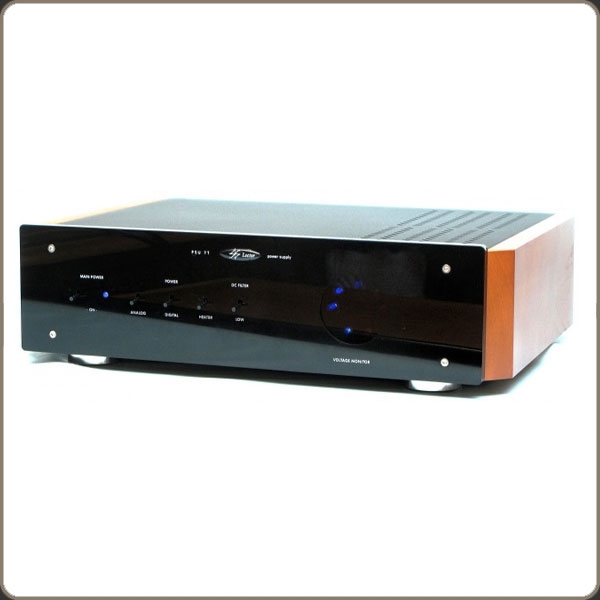

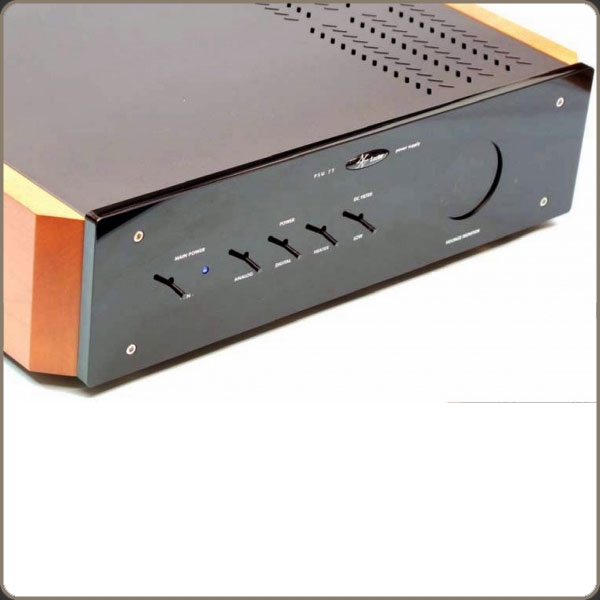

PSU-707 Power Supply

The all new power supply for the outstanding CDP-707 give to the CD player new powerfull bass control and great flowing sound quality to all frequency range. The PSU-7 is a complete and powefull energy plant factory : it supply clean energy also to extra audio components as preamplifier and power amplifier from an IEC output plug. A massive transformer galvanic isolator for a total of 500 VA supply a right energy to all circuits for a total of four toroidal transformers, five AC mains filters with shunt/parallele and series technology. A special hi performance DC filter reduce the residual DC components into the AC mains. This DC filter is selectable into two positions by toggle selector : High and Low step. All functions are visible from a LED monitor window, show the AC mains voltage stability and the selectable toggle insertion function. A real reference AC mains cable with hi-quality gold plugs including with the PSU-707

Specifications

- 4 Power transformers and 1 galvanic 500 VA isolator

- Residual AC noise level: better than 50 uV

- DC block filter: two levels selectable LOW (>3V) and HIGH (<9V)

- 5 Led display voltage monitor for analog quality check

- 5 Toggle commands: power on main/analog/digital/heater/dc filter

- Outputs: multiway connector for CDP-7 and IEC output for slave unit mains supply

- Power supply available: 100/110/230/240 V AC ; 50/60 Hz ; 650 VA

- Dimensions (LxPxH): 440 x 300 x 100 mm

- Weight: 17 kg

- Accessories supply: special power cable mains/ manual/lateral panels wood or black plexiglas

- Optional accessories: spikes feet for round foot set of three/Floating special feet
