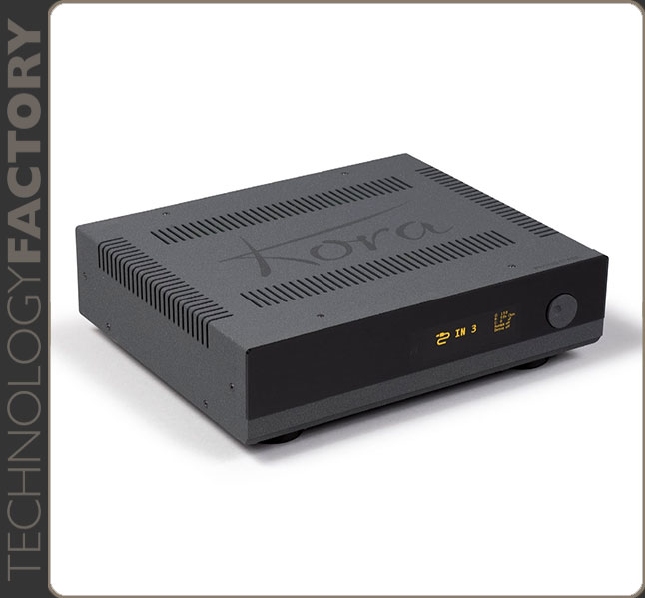

Kora PHONOSTAGE

EQ Preamplifier for vinyl records

6.600,00 Price include 21% VAT Price exclude VAT € 5.454,55

AVAILABILITY: 1 WEEK

FINISH

REMOTE

Quantity

PHONO STAGE

EQ Preamplifier for vinyl records

The input stage uses high-precision metal foil resistors. The correction capacitors use polystyrene technology. No concessions. The phono stage adapts to all types of cartridges, variable reluctance, moving magnets or moving coils. The preamplifier has four individually programmable inputs. For each, you can set the gain, input impedance, input capacitance and connection type. All programmed parameters are stored in memory.

General characteristics

- DIMENSION : 91 x 320 x 280 mm

- WEIGHT : 5 kg

- MATERIALS : Aluminium and steel

- FINISH : Mineral grey

- ACCESSORIES : Power cord, instructions

- SPECIAL FEATURES : Cartridge demagnetization Rumble, ‒6 dB cutoff at 7 Hz

- MAXIMUM OUTPUT VOLTAGE : 8 V RMS

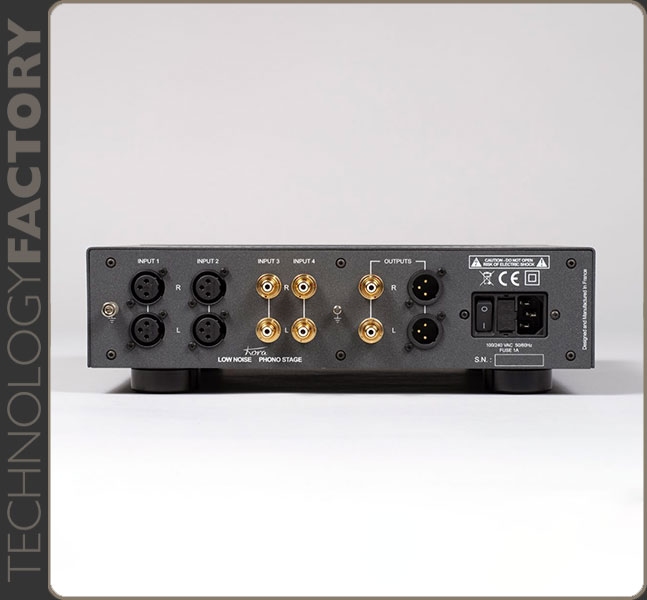

- INPUTS : 4 RCA sockets, 2 XLR

- SORTIE : RCA sockets, XLR sockets

The Kora Phono stage is a real «Swiss army knife» that will enable you to extract all the subtleties of your vinyl records while respecting the requirements of your cartridge. In the past years, the quality of analog replay has significantly improved : Turntables, cartridges, tonearms are able to extract every subtle details of the recording. The Kora Phono preamp is the perfect extension of the analog source and has been designed to provide the perfect combination of the finest musical reproduction and adjustability to ensure to deliver a ultra rich, life like level of analog playback. The phono Stage Kora is an audio adaptation of the EPC1 D, an ultra-low-noise laboratory preamplifier with unique characteristics (built by Kora’s professional division). In the input stage, high-precision metal foil resistors are used. The correction capacitors use polystyrene technology. The Phono Stage adapts to all types of cartridges, whether variable reluctance, moving magnets or moving coils. The preamplifier features four individually programmable inputs. For each, you can set gain, input impedance, input capacitance and connection type. Two inputs are on threepin «XLR» type sockets, which can be used to receive a cartridge connected symmetrically (two signal wires plus ground) or asymmetrically (one signal wire and a reference, ground). Two other inputs are coaxial «RCA» sockets. These two inputs are unbalanced by design. The preamplifier has two unbalanced and two balanced outputs that can operate simultaneously

Specifications:

General characteristics

- Overall dimension: 320 × 91 × 280 mm

- Chassis size only: 320 × 75 × 260 mm

- Unit weight: 5 kg

- Manufacturer’s warranty: 5 years

- Materials: Aluminium and steel

- Finish: Mineral grey

- Accessories: Power cord, instructions

- Construction & design: Toulouse, Occitania region, France

Electronic features

- Power supply: IEC socket, 100 to 240 VAC, 50 Hz — 60 Hz, Consumption (Stand-by): < 0.5 VA, Consumption (Normal operation): < 10 VA

- Special features: Cartridge demagnetization Rumble, ‒6 dB cutoff at 7 Hz

- Maximum output voltage: 8 V RMS

- Symmetrical output: Analog, On 3-pin male XLR sockets

- Asymmetrical output: Analog, On RCA sockets for coaxial cable

- Input 1 & 2: Analog, electable symmetrical or asymmetrical on XLR

- Input 3 & 4: Asymmetrical on RCA

- Gain: Programmable, 150 - 300 - 500 - 750 - 1000 - 1500 - 3000

- impedance Input: Programmable, 50 kΩ or adjustable from 10 Ω to 1 270 Ω, in 10 Ω steps

- capacitor Input: Programmable, From 0 nF to 1.5 nF, in 0.1 nF steps

- Input noise: 70 nV on the audio band

- Correction: RIAA curve at +/‒ 1 dB

- Bandwidth: 20 Hz ~ 20 000 Hz

- Internal impedance: Output: < 50 Ω
