Low Output 0,4mV MC Cartridge

1.149,00 Price include 21% VAT Price exclude VAT € 949,59

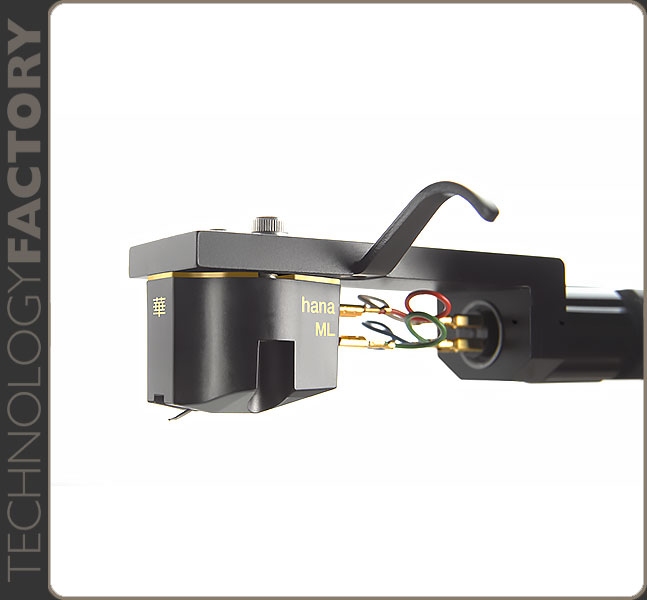

HANA-M Series deLuxe model MC cartridges
With its special Japanese character and meaning, , Hana brand moving coil cartridges manufactured by Excel Sound deliver the most “Brilliant and Gorgeous” performance for vinyl music lovers and audiophiles. This HANA sound comes from superb design, engineering excellence and 50 years of experience by Masao Okada-san, the Excel Sound cartridge design Master. During the past several years, the HANA E and S Series moving coil cartridges have achieved global recognition for their world-class analog music reproduction at a previously unattainable price.

Aspiring towards affordable perfection
Now, building upon the foundation of the critically acclaimed HANA sound, we introduce our new “M” Series deluxe model moving coil cartridge. Available in high and low output versions, this evolutionary new class leading model continues the HANA tradition by featuring higher specification parts, advanced materials, unique technical treatment and superior mechanical interface.Excel Sound manufactures all the major parts, producing affordable cartridges with an excellent sound quality. Specialized tooling improves the price/quality ratio, with manufactured parts designed for maximum performance and consistency. Excel’s experienced craftsmen skillfully hand assemble all the parts into an excellent finished product, producing the consistently “Brilliant and Gorgeous” HANA sound.

M Series Nude Microline stylus – Higher Specification Part
Befitting its name, the M Series uses a Nude Microline stylus, mimicking the cutting stylus and fitting more precisely into the vinyl groove. This enhances tracking to capture the most delicate musical details with better frequency reproduction, stereo imaging, and resolution.

High Purity copper wire – Higher Specification Part
Very high-purity copper wire is used for winding the M Series moving coils, offering greater clarity of sound for both low output ML and high output MH models. The ML features a new low impedance generator for optimized performance with a broader range of phono preamps.

Delrin© cartridge body – Advanced Materials
The M Series cartridge body is injection molded from POM (polyoxymethylene), commonly know as Delrin©, a high tech polymer with improved mechanical characteristics for better resonance damping, to reveal more low level information and enhance dynamic range.

Cryogenic Processing - Unique Technical Treatment
Cryogenic processing is Cold Annealing at near absolute zero temperature that restructures metals at the molecular level. Especially important in the Alnico based magnetic electro-motive circuit (cartridge signal generator). The M Series parts treated include the front yoke as well as center and rear components. The result is a more precise and controlled magnetic flux field for greater linearity and musical sound quality.

Threaded fittings and Brass Cap - Superior Mechanical Interface
Built into the M Series Delrin© cartridge body are metal threaded fittings for headshell mounting hardware, offering easier attachment and a superior mechanical interface for better bass and dynamics. The Delrin© cartridge body also features an integral machined brass cap providing constrained mode layer damping and its heavier 9.5 gram weight provides expanded compatibility with a wider range of tonearms and turntables.We have now reached a new dawn for HANA brilliance with the M Series deluxe model moving coil cartridges. The Hana ML (low output) and MH (high output) options represent the further evolution of the “Brilliant and Gorgeous” quality that has earned HANA its worldwide reputation as we aspire towards affordable perfection.

- Stylus: Nude Microline tip
- Cantilever: Aluminum
- Magnet: Alnico
- Magnetic circuitry: Pure Iron/Cryo treatment
- Coil wir: High Purity Copper
- Cartridge Housing/Base: POM (Delrin©) /Brass
- Output level: 0,4mv/1kHz
- Output balance: <1dB/1KHz
- Vertical Tracking force: 2gr
- Trackability: 70μm/2gr
- Compliance: 10 x 10-6 cm/dyne
- Channel separation: 30dB/1KHz
- Frequency response: 12-45,000Hz
- Impedance: 8Ω/1KHz
- Suggested load Impedance: 100Ω
- Cartridge weight: 9.5gr
- Body Color: Black
