All-In-One Server / Streamer MQA DAC & Integrated Amp

Aurender AP20
Aurender AP20
Aurender AP20
Aurender AP20
Aurender AP20
23.900,00 Price include 21% VAT Price exclude VAT € 19.752,07
AVAILABILITY1 MONTH

A premium Integrated Amplifier with the heart of an Aurender

- All-In-One Digital Source and Integrated Amp /
- 200 WPC into 8Ω, 350 WPC into 4Ω / Fully Linear PSU /
- Analog R2R Volume Control / Reference Grade DAC /
- Analog & Digital Inputs & Outputs / Headphone Output /
- Master Clock Input / 2x User-Installable Storage Slots

Elegance. Finesse. Resolution. Grace.
If ever Aristotle’s adage: “the whole is greater than the sum of its parts” is applicable in audio, it applies to AP20. And, given the quality and quantity of parts in this equation, that’s saying a lot.

AP20 delivers unprecedented audio performance from an integrated amplifier. It includes the world’s best Class D amp modules in a dual-mono configuration, an analog R2R relay-based volume control and preamp section, Aurender’s best DAC, a master clock input, a headphone output, a suite of digital and analog inputs and outputs, and the most sophisticated linear power supply block Aurender has ever deployed.

The result? An audio component that paints every musical timbre with full-bodied realism. With a delicate touch that's backed up by enormous headroom for transients and dynamic swings, AP20 drives even the most demanding speaker loads and casts a soundstage that is both expansive and laser-focused.

All of this performance, with the heart of an Aurender.

Other integrated amplifier solutions on the market may offer support for app-controlled streaming, but in nearly every case, the user experience, library management, and software playback engine are an afterthought requiring third-party software and hardware to get the job done. In AP20’s case, more than 10 years of industry-leading experience has made Aurender the digital source component of choice in the world’s finest audio systems. Now, that same holistic digital playback engine and user experience is available from an integrated amplifier that completely removes the need for more components and cables.

Just add speakers, and enjoy a premium HiFi experience, without all the HiFi boxes.

Key Features

Ultra High-Performance Class D Amplifiers
There's Class D, and then there's ridiculously good Class D. AP20 utilizes the finest amplifier modules available. Designed by renowned engineer Bruno Putzeys, the Purifi Eigentakt 1ET400A amplifier is free of digital harshness, edginess, and grain. Featuring impressive specifications that are reflected in its extraordinary audio performance, AP20's dual-mono amplifier section represents the state-of-the-art of Class D amp technology.

Dead-Quiet Linear Power Supply

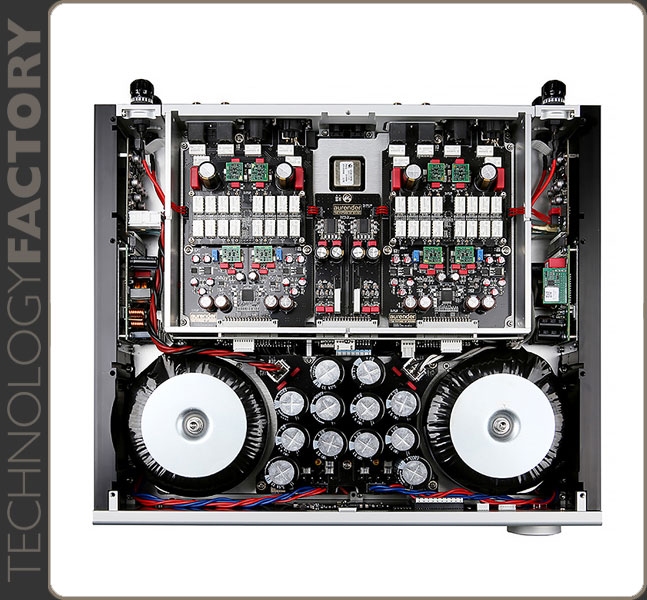

Most Class D amplifier implementations utilize switch mode power supplies because they are efficient, cool-running, and inexpensive. However, this can introduce noise and distortion to the signal path, resulting in an audio presentation that lacks a sense of natural analog grace. So, in typical Aurender fashion, AP20 uses SIX discrete toroidal transformers to power the CPU, left & right DAC boards, FPGA processor, and power output stages, respectively.

Aurender's Best DAC
Aurender designed the AP20 for those seeking the simplicity of an all-in-one unit without sacrificing a high level of resolution, transparency, and inner detail. Built around an integrated dual-mono AKM4497 DAC module, AP20's best-in-class DAC section delivers high-resolution PCM, DSD, and MQA full-decoding at the highest level.

Analog Volume Control
In any system, the quality of the audio presentation is significantly impacted by the volume control mechanism of the preamplifier. Remarkably, AP20 employs an analog-domain volume control based on an R2R stepped-attenuator system. Volume control of this quality is utterly uncommon in digitally-equipped integrated amps, and it is a major reason why AP20 provides such a natural, open sound.

OCXO Precision Clock
AP20's OCXO based precision clock generation system incorporates a Field-Programmable Gate Array (FPGA) with sub 100fs jitter-reducing clock generator to precisely time digital audio data transmissions and minimize jitter to below negligible levels.

Analog Pass-Through Inputs
The AP20 provides a suite of analog inputs including 1X balanced XLR and 2X single-ended RCA, offering an ideal solution for integrating external analog sources into your audio system. Vinyl enthusiasts can connect their phono stage to an available analog input and enjoy pure analog pass-through without any A/D conversion in the signal path.

Digital Connectivity
With a variety of digital inputs including 1X RCA SPDIF, 1X BNC SPDIF, and 2X TOSLINK optical interfaces, AP20 is well-equipped to render external digital sources such as a CD transport, media player, or TV via its superior internal DAC.

Variable Output XLR Output
AP20's high-quality balanced XLR output allows the user to feed a second system such as a distributed whole-home audio installation, or subwoofer(s) with line-level input (XLR-to-RCA adapters may be required in some cases).

Master Clock Input
Although AP20 is equipped with an extremely precise OCXO clock system, jitter can be minimized further by connecting a 10MHz Master Clock signal generator such as Aurender's MC10.

Dedicated Headphone Section
In addition to being a stellar amplifier for loudspeaker systems, AP20 also features a 1/4" headphone output for quiet moments.

Hallmarks of Aurender

Hardware <> Software Integration
A closed system. Aurender playback and control software is developed in the same building as its hardware. Superior integration means that Aurender's software engineers are able to specifically optimize playback performance of the extremely robust hardware at their disposal.

Caching Playback Engine
Other systems buffer. Aurenders cache. Every Aurender model features a massive solid state memory from which all playback occurs. This important feature helps to minimize system resource requirements for enhanced audio performance and stability.

Low-Power High-Efficiency CPU
A powerful CPU is essential to making any computer run smoothly and quickly. However, with more power comes more noise. Aurender's low-power high-efficiency Intel CPUs have enough headroom to run the machine while minimizing the amount of current drawn in order to keep the noise floor as low as possible.

Elegant Front Panel Display
Easy to read high resolution LCD display. Dynamic, elegant, understated.

Double Isolated LAN Port
Two layers of transformer based isolation to filter noise out of Ethernet connection.

Local Library Storage Capacity
Every Aurender contains either massive built-in internal storage capacity, or at least one slot for super easy user-installable storage options. Enjoy localized media storage, and ditch the cumbersome NAS or HDD.

Integrated Streaming Services
The entire world of streaming music content is available to you within one great app. Enjoy integrated access to TIDAL, Qobuz, and Internet Radio. Plus Spotify Connect and AirPlay.

Critical Listening Mode
Enable Critical Listening Mode to defeat the front panel screen, buttons, and all background computing activity that is not essential for playing music. CLM offers an even quieter, more transparent audio presentation.

USB HDD and NAS Connectivity
The best user experience occurs occurs when your music content is stored on Aurender’s internal storage. However, USB 3.0 data ports and NAS share connectivity are included in order to play or import content stored on a NAS, external USB hard drive, or thumb drive.

Support for All Major Audio Codecs & Formats

Remote Internet Technical Support
In case you should encounter any difficulty or problems, Aurender's dedicated support team may log into your system remotely to diagnose and fix any issues. We take support extremely seriously, and we're here to help!

Technical Specifications
- Power Supply Full Linear, 2x 400VA Toroidy Transformers (L&R Power Amp),
 2x 50W (L&R Audio Boards), 1x50W (CPU), 1x25W (FPGA)
- CPU Intel Low Power Quad Core
- RAM 8GB
- Library Storage Capacity 2X 2.5" Compartments (User-Installable Storage)
- SSD for System & Cache 480GB NVME
- Data USB Ports 2X USB 3.0 (Rear)
- Software Suite Aurender Conductor, A30 Manager
- Ethernet Port
- Double-Isolated Gigabit LAN
- Uninterruptible Power Supply (UPS) Yes (Super Capacitors)
- Power Consumption Play (47W), Peak (80W), Standby (6W)
- CD Ripping Capability N/A

Audio Specifications
- Volume Control Relay-Based R2R Stereo Attenuator -64dB ~ 0dB.,
 Velocity Sensitive Operation
- Analog Outputs XLR (Balanced)
- DAC Chipset AKM 4497 - Dual-Mono
- Audio Word Clock OCXO
- Analog Outputs Supported Format PCM: Up to 32-bit / 768 kHz; DSD: Up to DSD512
- Digital Outputs N/A
- SPDIF & AES/EBU Output Supported Format N/A
- Digital Inputs 1X Coax RCA, 1X Coax BNC, 2X Optical/Toslink
- Headphone Section 1 x 1/4" (6.5mm) Unbalanced
- Master Clock Input Coaxial BNC 75Ω - 10MHz
- MQA Support MQA Full-Decoder On Board
- Compatible Formats DSD (DSF, DFF), WAV, FLAC, AIFF, ALAC, M4A, APE and others
- DSD-to-PCM Conversion N/A

Amplifier Specifications
- Amplifier Module 2x Purifi 1ET400A Class D Amplifier Module in Dual-Mono
 Configuration
- Rated Power Output 200 W into 8 ohms / 350 W into 4 ohms
- THD (20Hz-20kHz) 0.003 % (1W to 200 W, 8 ohms and 4 ohms)
- Damping Factor 800 (ref. 8Ω 20 Hz to 6.5 kHz)
- Output Impedance <65μΩ @ 1kHz
- Power Configuration Full linear & Dual-Mono - 2 x 400VA Audio grade Toroidy toroidal
 transformers
- Power Supply Filter Capacitors Total 80,000uF ( 40,000 uF / channel)
- Binding Posts WBT nextgen™ pole terminal - Signal conductor made of pure copper

Physical Specifications
- Dimensions: 16.93"W x 14.2"D x 5.9"H
- Weight: 57.3 lb
- Material: Machined Aluminum Chassis
- Front Panel Display: 8.8" 1920 x 480 Wide IPS Color LCD


>
