Technics SU-C700 Silver

Premium Class Stereo Integrated Amplifier 2*45W

DISCONTINUED

AVAILABILITY: N/A

FINISH

Stereo Integrated Amplifier SU-C700

Employs innovative fully-digitised processing that delivers a pure and accurate signal to the speakers.

JENO Engine (Jitter Elimination and Noise-shaping Optimization)

Just like the R1, the SU-C700 is a fully-digital amplifier and delivers high-resolution digital signals without any distortion being introduced between the input stage and output to the speakers. Technics has developed an original jitter-reduction circuit, avoiding the sound quality degradation due to jitter common to conventional digital amps. It uses a clock generator for the noise-shaping system to reduce jitter in the low-frequency range and a high-precision sample rate converter to suppress jitter in the high-frequency range.

LAPC (Load Adaptive Phase Calibration)

Technics has developed a speaker impedance optimisation algorithm, using digital signal processing to flatten both the amplitude and phase-frequency response to make the most of your speakers. The result is a sound with better focus, spaciousness and definition.

High-speed Silent Linear Power Supply

Using a large-current Schottky-barrier diode, a rectifier circuit with electrolytic capacitors, and a stabilised power supply circuit, the SU-C700 ensures ample power supply at all times, even when dynamic music demands high current.

Battery Driven Clock Generator

Technics used battery power for low-noise applications in analogue amplifiers in the past: here, this same technology is used to improve digital clock precision, enhancing the definition of the sound.

Various Inputs

The SU-C700 supports a wide range of inputs, such as SPDIF, Analogue and Phono, as well as USB-DAC for connection of a PC. The digital input terminal supports coaxial 192-kHz/24-bit PCM and optical 96-kHz/24-bit. The USB DAC input terminal supports 192-kHz 32-bit PCM and 2.8-MHz/5.6-MHz DSD native playback (analogue output) and asynchronous transmission. The SU-C700 converts analogue signals to high-precision 192-kHz/24-bit PCM signals using the A/D converter. The full-digital system achieves high-purity reproduction from any content.

- Digital Coaxial Input: PCM 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz 16 / 24 bit

- Digital Optical Input: PCM 32 / 44.1 / 48 / 88.2 / 96 kHz 16 / 24 bit

- USB-B: PCM 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz 16 / 24 / 32 bit

- DSD: 2.8224 / 5.6448 MHz 1 bit

Accurate Digital Technology

- JENO Engine (Jitter Elimination and Noise-shaping Optimization)

- Load Adaptive Phase Calibration

- High-speed Silent Linear power supply

- Battery Driven Clock Generator

- High Rigidity Metal Double Chassis

Technics Definitive Design

- High Rigidity Aluminium Cabinet

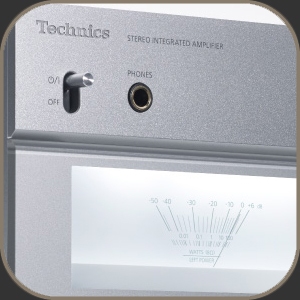

- White LED Illuminated Large Level Meter

- Symmetric Structure

Specifications

- Frequency Response: LINE 20 Hz - 80 kHz (-3 dB, 8 Ω), PHONO(MM) 20 Hz - 20 kHz (RIAA DEVIATION ±1 dB, 8 Ω),

- COAXIAL1/2/3, 20 Hz - 90 kHz (- 3 dB, 8 Ω)

- Output Power: 45 W + 45 W (1 kHz, T.H.D. 0.3%, 8 Ω, 20 kHz LPF), - 70 W + 70 W (1 kHz, T.H.D. 0.5%, 4 Ω, 20 kHz LPF)

- Input Sensitivity / Input Impedance: LINE 200 mV / 22 kΩ, PHONO (MM) 2.5 mV/47 kΩ

- Load Impedance: 4-16 Ω

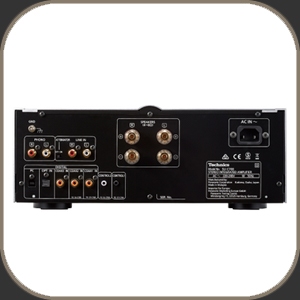

- Analogue Input Terminal: LINE x 1, PHONO(MM) x 1

- Digital Input Terminal: Coaxial Digital x 3, Optical Digital, USB-B

- Headphone Output: Yes

- System Port: System Control Input/Output (Φ3.5 mm Jack)

- Power Supply: AC220-240 V, 50 Hz/60 Hz

- Power Consumption: 73 W

- Dimensions (W x H x D): 340 x 132 x 325 mm

- Weight: Approx. 8.3 kg

- Accessories: Remote Control, AC Cord, Operating Instructions

>
