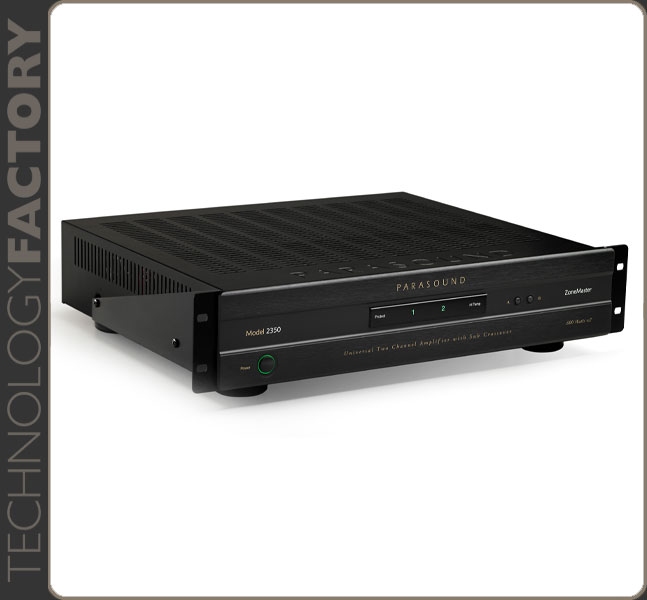

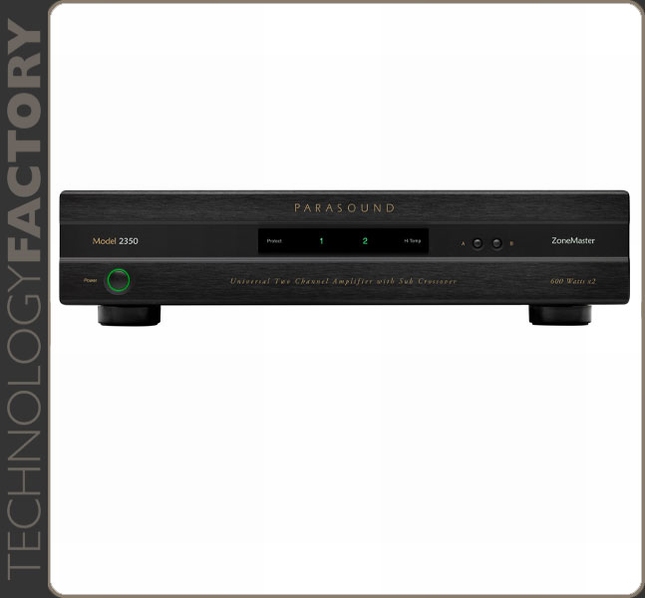

Parasound ZoneMaster 2350

Universal 2Ch- 4 Speaker 350w/ch Amplifier w/ Sub X-over (2RU)

€ 2.590,00 Price include 21% VAT Price exclude VAT € 2.140,50

AVAILABILITY: 1 WEEK

OPTION

Quantity

Features

- 350 watts x 2 @ 8 Ω

- 600 watts x 2 @ 4 Ω

- 2 Ω stable for driving multiple speaker pairs

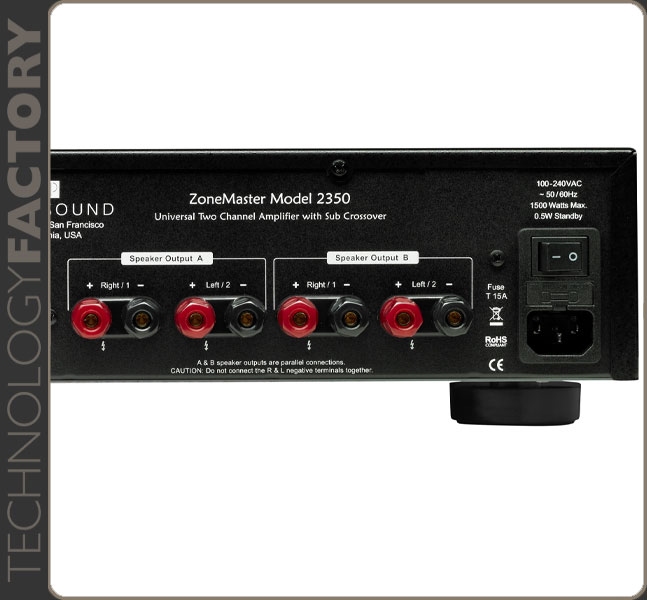

- Two pairs of speaker outputs with A/B buttons

- Lockout switch on rear panel to disable A/B buttons

- High pass filter, switchable for 30Hz or 80Hz

- Automatic on/off by 12V trigger w/ looping output

- Automatic on/off by audio signal

- Speaker level input enables integration with systems lacking preamp output jacks

- Parasound designed class AB input stage w/ premium Class D power stage

- Subwoofer mode for driving multiple in-wall subs without the need for an external crossover

- Mono mode combines L and R for single speaker applications

- Mono full range preamp output

- Subwoofer 80Hz, 24dB/oct. low pass preamp output

- Looping left and right output jacks

- Left and right input level controls

- Efficient, low heat design

- Short circuit and overload protection

- 0.5 watt standby power consumption meets EU and Energy Star requirements

- 2U rack mounting hardware is included in box

Specifications

Power Output

- RMS, Both Channels Driven (20 Hz – 20 kHz)

- 350 watts x 2 @ 8 Ω

- 600 watts x 2 @ 4 Ω or 2 Ω

Minimum Speaker Impedance (Output A+B)

- Stereo or Mono Mode: 2 Ω

- Subwoofer Mode: 4 Ω

Note: Operation at these minimum impedances might require additional ventilation.

Frequency Response

- 10 Hz – 70 kHz, +0/-3 dB

- 20 Hz – 20 kHz, +0/-0.8 dB

Total Harmonic Distortion

< 0.05 % at typical listening levels

< 0.9 % at full power

Inter-channel Crosstalk

- 70 dB at 20 kHz

Input Sensitivity:

- 2 Volts = Full output (350 Watts @ 8 Ω)

- Total gain = 29 dB (Level controls set to Maximum)

S/N Ratio

> 100 dB, input shorted, unweighted

> 114 dB, input shorted, IHF A-weighted

High and Low Pass Crossovers

- Sub Mode and Sub out jack: 80 Hz, 24 dB per octave

- High Pass Filter: 30 Hz or 80 Hz, 12 dB per octave

DC Trigger Requirements

- +9 Vdc to +12 Vdc, 5 mA

Audio Trigger Requirements

- 2 mV audio signal (8-15 minutes turn off delay)

AC Power Requirement

- 1500 Watts maximum

- 100 Watts typical (music playing, typical listening level)

- 30 Watts idle (no music playing)

- 0.5 Watts in standby

- 110-240 VAC 50/60 Hz

Dimensions

- Width: 17.25" (438 mm)

- Depth: 14.5" (368 mm)

- Depth: 16.25" (412 mm) with cables connected

- Height, with feet: 4.25" (108 mm)

- Height, without feet: 3.5" (89 mm), 2U

Weight

- Net: 15 lbs. (6.8 kg)

- Shipping: 22.25 lbs. (10.1 kg)
