NuPrime Audio CDT-9

CD-transport, Similar to CDT-8 Pro with optional external linear power supply.

€ 1.325,00 Price include 21% VAT Price exclude VAT € 1.095,04

AVAILABILITY: 1 WEEK

FINISH

Quantity

The NuPrime CDT-9 is a highly accurate professional music CD transport with powerful DSP-based decoder that provides all Red Book error-correction capabilities with master-clock control of the entire decoding system, thus lowering jitter significantly. The transport’s single speed minimizes vibration and unbalanced discs. A selectable sampling rate converter (SRC) samples the CD format to a higher sampling rate (up to PCM 24-bit/768kHz and DSD256) with ultra-low jitter and distortion. The CDT-9 Transport comes with features that enable it to out perform all CD transports in its price range.

Highly Accurate CD Playback

- A powerful ARM chip LPC2103F CD reads, writes and controls error correction

- Philips SAA7824HL high-end laser reads/writes head control and decodes chips for CD transport.

- Algorithm reduces digital interference resulting in extremely low jitter

- Coaxial output with a dedicated isolation transformer

- Low jitter I2S output for professional use

Sampling Rate Converter

- The sampling rate of CD playback can be up sampled to PCM and DSD, from 44.1kHz to 768kHz or DoP256

- The conversion is achieved by up-sampling to mega hertz before down converting to the targeted sampling rate with ultra-low jitter and distortion

Power and Mechanical

- Custom R-type professional transformer with shielding

- Low power consumption in Standby Mode•

- NuPrime vibration-free isolation feet

- High quality aluminium remote control

- Available in black or silver anodized aluminum ﬁnish

- External AC adapter included

- Bundled with LPS-212 for $1495 (recommended option)

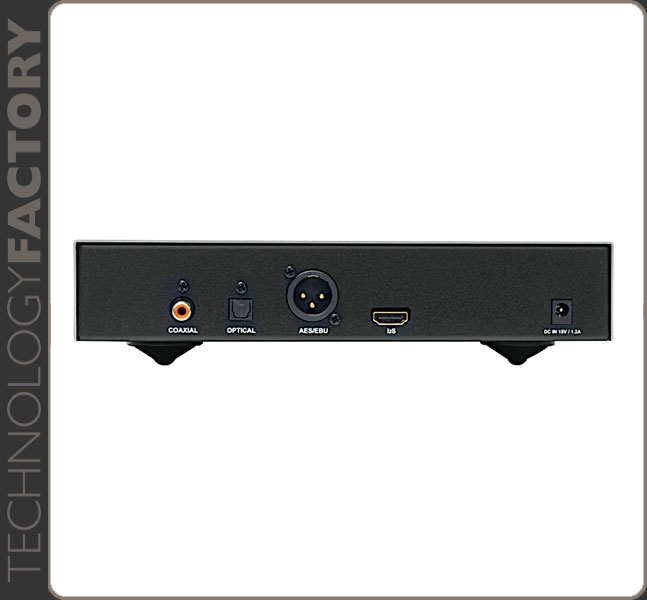

Outputs:

- Optical Output (up to 24 bits / 192 kHz) (DoP64)

- Coaxial Output (up to 24 bits / 768KHz) (DoP256)

- HDMI I2S* Output (up to 24 bits / 768KHz) (DoP256)

- AES / EBU Output (up to 24 bits / 768KHz) (DoP256)

Specifications

- Optical Sampling Rates Converter (SRC): 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 92KHz, DoP64

- Coaxial Sampling Rates Converter (SRC): 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz, 352.8KHZ, 384KHz, 705KHZ, 768KHZ, DoP64, DoP128, DoP256

- HDMI I2S Sampling Rates Converter (SRC): 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz, 352.8KHZ, 384KHz, 705KHZ, 768KHZ, DoP64, DoP128, DoP256

- AES / EBU Sampling Rates Converter (SRC): 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz, 352.8KHZ, 384KHz, 705KHZ, 768KHZ, DoP64, DoP128, DoP256

- Bit Resolution: 24-bits

- Dimensions: 235 mm W x 260 mm D x 55 mm H (including feet). The CD transport is 20.5mm from the edge of the case.

- Weight: 3Kg

- AC Fuse: Slow-blow, 1A, 250VA

- Worldwide AC voltage: 100VAC~240VAC

*CDT-9 DC power input: 12 to 15V

>
