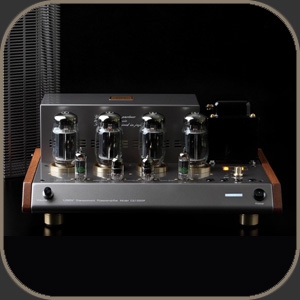

Leben CS-1000P

Tube Power Amplifier 2x100 Watt

€ 11.000,00 Price include 21% VAT Price exclude VAT € 9.090,91

AVAILABILITY: 12 MONTHS

Quantity

Features

- High power output tube KT120(Super KT88)

- 100W/ch(1KHz) at Pentode circuit (70W/ch at Triode).

- Pentode/Triode selector switch

- Bias adjustment with a Cathode-direct meter

- Several type of output tubes are applicable by adjusting the cathodal electric current.

- Newly developed Orient-core output transformer

- A minimum loss and a Superior high-frequency response.

- Flat and wide Frequency Response

- A wide frequency response from 10Hz to 150KHz(-0dB) caters for digital audio formats such as SACD/HDCD.

- High rigidity solid aluminum insulators

- Super-high sensitivity bias meter made by a long-established manufacturer.

- High-grade Metal glaze resistorals of below 1% error margin.

- High-grade 41-steps Detent Volume of ALPS.

Specifications

- Tubes Compliment: Kt120 X 4, 6922/6dj8(Ecc88) X 2, 6cg7/6fq7 X 2

- Output Power: 100w X 2 At 1khz.

- Frequency Response: 10hz - 150khz. (-3db)

- Input Sensitivity: 0.4v At 50w

- Input Impedance: 100k Ohms.

- Output Impedance: 4/6/8/16 Ohms (Selectable)

- Weight: 23.5 Kgs.

- Dimensions: 455 (W) X 200 (H) X 335 (D) Mm

- Attachment: Detachable Ac Power Cable X 1
