Jadis JS 5

Tube D/A Converter

14.950,00 Price include 21% VAT Price exclude VAT € 12.355,37

AVAILABILITY: 1 MONTH

Quantity

Description

- The JS5 converter bears witness to the essential link between digital innovations and analogue world, to which we are very attached.

- The first DAC of a new range, result of research and innovations to offer an incredible experience.

- Digital section is built around a DAC sabre ES9038PRO using Hypertream technology 32 bit.

- Four digital inputs, managed by a microship Microcontroller, pass through this converter. Output signal is filtered and shaped before passing by our famous self-balanced symmetrical analog stage.

- An amplification stage followed by an impedance adapter stage ensures output signal muscial quality supplying in an optimum way the following link.

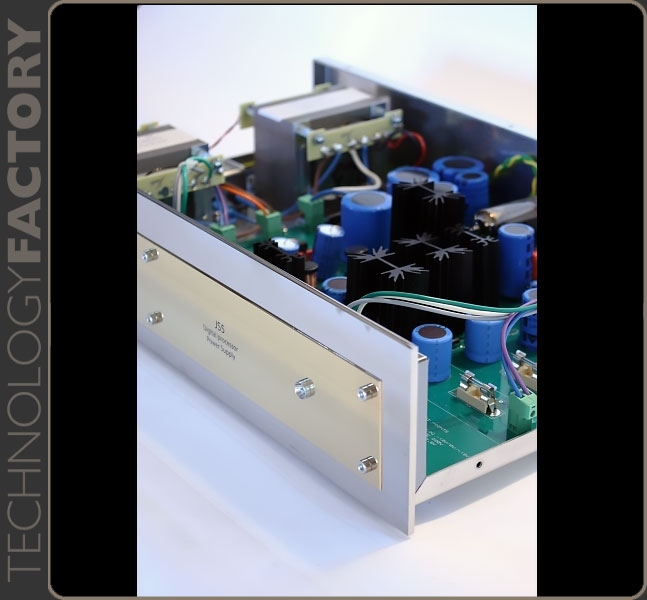

- To make this system works, a separate chassis contains power supply of the différents stages, analog and digital sections have their own transformer.

- Each voltage of each section is separated. Rectification, filtering PI cell and regulations supply in the best way signal treatment stages.

Inputs

- SPDIF on RCA-PCM 24 bits/192 KHz

- AES/EBU on XLR - PCM 24 bits/192 KHz

- SPIDF on Toslink - PCM 24 bits/ 192 KHz

- USB type B - PCM: 24 bits / 192 KHZ - DSD : 24 bits/384 KHz

Outputs

- Unbalanced on RCA

- Balanced on XLR

Specifications

- Type: Digital to Analog converter with separated power supply

- Number of blocks: 2

- Tubes list: 2xECC82, 2xECC88, 1xEL84 and 1xEF86

- Dimensions: 46 x 29 x 10,5 cm each

- Weight: 19 KG
