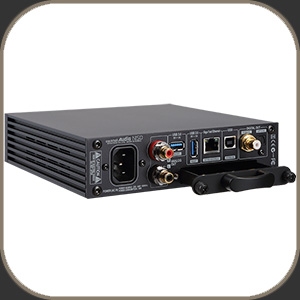

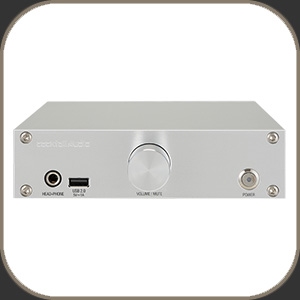

Cocktail Audio N15D

Cocktail Audio N15D

USB DAC + Network Player

Cocktail Audio N15D
Cocktail Audio N15D
Cocktail Audio N15D
Cocktail Audio N15D
Cocktail Audio N15D
699,00 Price include 21% VAT Price exclude VAT € 577,69
AVAILABILITYN/A

Features

High Performance System Resources
- Based on powerful dual core ARM Cortex A9 running at 1.0GHz
- UPnP(DLNA) Server/Client/Media Renderer/Samba Server/Client are supported
- Super Sound Quality created by Sabre ES9018K2M Reference DAC built-in
- 2.5 inch HDD or SSD storage deck is ready
- Giga Fast Ethernet LAN built-in
- High speed internal data transferring

Other Great Features & Functions
- Dedicated USB Audio Class 2.0 Input is ready
- Major Online Muisc Services like TIDAL Qobuz, Deezer, Napster, Airable are integrated
- Apple Airplay is supported
- Intuitive, feature rich and speedy remote control app for iOS and Android devices
- Give networking capability to your existing DAC & Amplifier
- Roon Ready is supported

Hi-Res Audio Formats are supported
- 24Bit/192KHz HD WAV, FLAC are supported
- DSD64, DSD128, DSD256 files are supported
- Support MQA file

Most of music file formats including hi-res format are supported
Hi-res music files like DSD file(DSD64/128/256), DXD(24Bit/352.8Khz), 32Bit/384Khz PCM file and 24Bit/192Khz HD WAV/FLAC files are supported.

High Performance System Resources
Dual Core ARM Cortex A9 processor running at 1.0GHz
Integrating commerical version of NTFS/HFS+ file system and EXT4 Linux file system into the N15D. This wll lead to wonderful performance for backup and file management functions.
Giga Fast Ethernet LAN built-in

High Quality Analog Out Terminal for High Quality Sound
To guarantee lossless signal transmission and high quality sound, N15D offers a fair of high quality analog out terminal which is powered by ESS Sabre DAC ES9018K2M cooperating with XMOS 32Bit/500MIPS Digital Signal Processor.

Versatile Networking functions
- Connect the N15D to your network to stream music to and from other devices, listen to cloud based music services and control remotely using mobile devices.
- Control remotely using mobile devices including: iPhone, iPad and Android smartphones and tablets with customized App, NOVATRON MusicX.
- The N15D is a UPnP (DLNA) Media Server& Renderer so you can stream music to and from other compatible devices (e.g. WiFi speakers)
- Use the cocktailAudio Web Interface to control the N15D and manage the Music DB remotely
- Manage your files (Copy, move or delete) over a network thanks to support for Samba
- Access online music services like Qobuz, TIDAL, Deezer and Airable

Famous Online Music Services integrated into the N15D
Famous online music services like qobuz, TIDAL, Deezer, Napster are available at the N15D. You can play them directly with the N15D conveniently if you have its user ID and password.

Millions of internet radio stations and Podcasts are also provided with free.
This is powered by Airable Internet Radio server. You can record iRadio music also with high qualtity of audio via the N15D's recording function.

Storage for Music Database
You can intall 2.5inch hard disk drive or solid-state drive(SSD) into N15D. And, you can build your own Music Database via N15D's 'Import to DB' function.

Major two(2) functions of N15D
1 - USB DAC(Digital to Analog Converter) You can connect N15D to PC via USB cable, and play files in your PC via N15D with wonderful sound quality
2 - HiFi Network Adapter, Source Device, Music Storage & Player with Music Database for existing amplifier or DAC N15D is a network streaming node designed for your existing DAC or Amplifier. It will give your existing audio systems wonderful networking ability

Specifications
- Host CPU & Memory        CPU: Dual Core ARM Cortex A9 running at 1.0GHz
- Main Memory: DDR-1066 1GByte EMMC 8GByte
- Storage SATA II interface 2.5inch HDD & SSD Support
- Interface - Customized Remote App Control
- Web Interface Control
- Digital out (Variable/Fixed) COAXIAL x 1 S/PDIF 75ohm RCA, Sample rate: up to 24bit/192KHz TOSLINK x 1 S/PDIF, Sample rate: up to 24bit/192KHz
- Analog Out RCA(L, R)        Fixed/Variable, 4.5Vrms(Max) Headphone 6.35mm Jack, 80mW at 300 ohms
- Audio Input USB Audio In USB Standard B Connector, USB Audio Class2.0 Input
- Connectivity        USB Host USB2.0(5V/1A) x 1 at front USB3.0(5V/1A) x 2 at rear Network        Wired        Giga Fast Ethernet(10/100/1000Mbs) Wireless(Option)        WiFi USB Dongle via USB Host port
- Codec & Format supported DSD(DSD64, DSD128, DSD256), DXD(24Bit/352.8KHz), HD WAV(24Bit/192KHz), HD FLAC(24Bit/192KHz), APE/CUE, WAV, FLAC, ALAC, AIFF, AIF, AAC, M4A, MP3, WMA, Ogg Vorbis, PCM, M3U, PLS, etc
- Network Protocols Supported UPnP(DLNA) Server/Client/Media Renderer, Samba Server/Client, FTP Server, Web Server, etc
- Internet Services Internet Radio/Podcast Airable Online Music Services TIDAL, Deezer, Qobuz, Spotify Connect, Napster
- Power Source        220V - 240V ~50/60Hz(* 110V area : 100V - 120V ~50/60Hz)
- Dimensions 180mm(W) x 180mm(D) x 45mm(H) without foot
