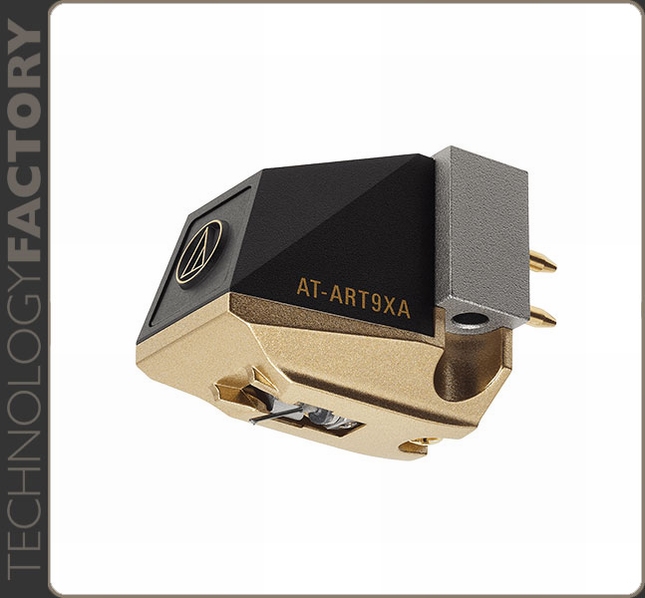

Audio Technica AT-ART9XA

Dual Moving Coil Cartridge (Non-Magnetic Core)

€ 1.549,00 Price include 21% VAT Price exclude VAT € 1.280,17

AVAILABILITY: 1 WEEK

Quantity

An update of the AT-ART7, the AT-ART9XA non-magnetic core MC cartridge features a Shibata stylus on a 0.28 mm diameter solid boron cantilever. The “ART” in the model number stands for Audio-Technica Reference Transducer, a designation that we give only to our flagship phono cartridges. Compared with the magnetic core used in most MC cartridges, non-magnetic core cartridges are free from magnetic distortion, allowing for natural timbre and a precise sound field. Although conventional non-magnetic cores struggle with output voltage, the AT-ART9XA features a newly designed coil armature with an improved output voltage of 0.2 mV (1 kHz, 5 cm/sec). The dual moving coils (fashioned from high-performance PCOCC wire) are aligned in an inverted V shape to provide high separation and wide response. Threaded cartridge mounting holes make installation to a headshell or integrated tonearm incredibly easy.

Features

- Non-magnetic core moving coil cartridge offers superior spatial representation

- Dual moving coils are aligned in an inverted V shape, providing high separation and wide response for clear sound localization and minimal distortion

- Shibata stylus ensures accurate high and mid-low range reproduction, and the 0.28 mm diameter solid boron cantilever provides excellent response characteristics

- Neodymium magnet and permendur yoke significantly increase magnetic energy

- Redesigned coil armature provides an output voltage of 0.2 mV (1 kHz, 5 cm/sec)

- PCOCC coils ensure high-fidelity transmission

- Machined aluminum base supports both the magnetic circuit and the vibration system, ensuring excellent playback stability

- Hybrid body of machined aluminum and high-rigidity plastic reduces undesirable parasitic resonance

- Threaded cartridge mounting holes allow easy installation to a headshell or integrated tonearm

Specifications

- Frequency Response: 20-50,000 Hz

- Channel Separation: 30 (dB at 1 kHz)

- Vertical Tracking Angle: 20°

- Vertical Tracking Force: 1.6-2.0 g (1.8 g standard)

- Stylus Construction: Nude

- Recommended Load Impedance: Min. 100 ohms (when head amplifier connected)

- Coil Impedance: 12 ohms (1 kHz)

- DC Resistance: 12 ohms

- Coil Inductance: 2.5 µH (1 kHz)

- Output Voltage: 0.2 mV (1 kHz, 5 cm/sec.)

- Output Channel Balance: 0.5 dB (1 kHz)

- Stylus Shape: Shibata

- Cantilever: 0.28 mm diameter solid boron

- Static Compliance: 20 x 10-6 cm/dyne

- Dynamic Compliance: 10 x 10-6 cm/dyne (100 Hz)

- Mounting: Half-inch

- Cartridge Weight: 8.5 g (0.30 oz)

- Dimensions: 17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.0 mm (0.98") D

Accessories Included

- Non-magnetic screwdriver

- 2 washers

- cartridge installation screws (M2.6) (5.0 mm × 2, 8.0 mm × 2, 10.0 mm x 2, 12.0 mm x 2)

- protector

- brush

- Threaded Hole M2.6 x 2

Notes Note: moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.

>
