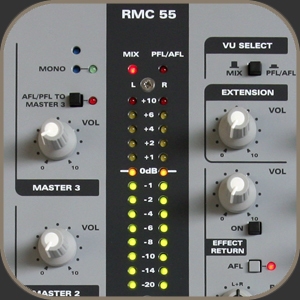

Amix RMC55
Technology Factory Online Shop

Amix RMC55

Mixing desk - 4 channels + 1 DJ - 15 Inputs

Amix RMC55
Amix RMC55
1.425,00 Price include 21% VAT Price exclude VAT € 1.177,69
4 Channels + 1 DJ (mic/line input, 3 band equalizer volume, mute, on / off switch), 15 inputs, 3 balanced stereo outputs, 2 RCA recording outputs, Extension input, phones output, Mix in one ear and monitoring in the other, adjustable crossfade curve, 45 mm Crossfader with VCA°, 14 points Bargraph, an external power supply.

By channel
- Selected inputs: mic (switchable phantom power supply, line1, line 2/Pu.
- 3 band equalizer (-35 dB, -30 dB, -35 dB), sensitivity control, voice over, effect, cue switch, start, assignable AFL/PFL on stereo output 3, vumeter, routing A & B crossfader, 100 mm Fader with VCA*.

*VCA (Voltage Controlled Amplifier): the sound doesn't flow through the potentiometer. This one controls an electric tension driving sound volume graduation. All of this makes the RMC55 a console with an incredible lifetime which will never ever let any cut, cracking nor chirping!

DJ dedicated channel
- Mic input switchable on line (HF mic or voice processing connection for instance)
- Triple correction bass tones, medium, treble
- Volume and switch on/off plus a outside mute control (control room amplifier cut when mic interventions)

Output
- Three balanced stereo outputs with independant volume.
- PFL and AFL are sendable to output n°3 when this one is used in control room foldback.
- 2 unbalanced recording outputs on RCA
- A balanced extension input for external source connection (live console or itinerant DJ)
- 45 mm cross fader, VCA control, adjustable and reversable curve.
- Headphones outputs on front and back face
- Mixing in one ear and premonitoring on the other is possible.
- Sensitivity and foldback time voice over control.
- Vumeter/14 points bargraph for a better control.
- Connector for external cross fade RXF200 option. This RXF200 option includes the switch for commutation between external cross fade and table cross fade.

Specifications
- Signal/noise ratio. 111.5 DBA maximal dynamic.
- 0.018 % distortion at 1KHz/+4dBu out
- + 24 dBu / 12.3 Volts output dynamic.
- Wide bandwidth (100 KHz for a better answer to transitories)
- Size : console: 260x355x75mm, Fitting size: 227x348mm

Available in 3 versions
‏- RMC55 L: Standard Potentiometer
‏- RMC55 P: Pro Potentiometer
‏- RMC55 S: Plastique track Potentiometer
