WEISS INT203

WEISS INT203

Couple Yiour Firewire Equiped Computer With Your DAC - 2 channel Firewire <-> AES/EBU and S/PDIF

WEISS INT203
WEISS INT203
972,00 Price include 21% VAT Price exclude VAT € 803,31
AVAILABILITY1 WEEK

The INT203 is for bidirectional interfacing between AES/EBU and Firewire and also includes an infrared remote control for volume and absolute polarity. The bit transparency of the player software on the computer can be checked. The INT203 can serve as an input to the computer, e.g. to connect an A/D Converter for transferring vinyl records or other analog media.

SYNCHRONIZATION
The sampling frequency is generated with an internal generator in the INT202/INT203. This ensures a low-jitter transfer between the computer and D/A converter. In addition, the INT203 can be switched to external synchronization via its XLR or RCA AES/EBU inputs. Both units work at all standard sampling frequencies between 44.1 and 192 kHz. Both devices support bit transparency checking. In addition, there is a digital level control with a proper dithering algorithm applied.

Specifications

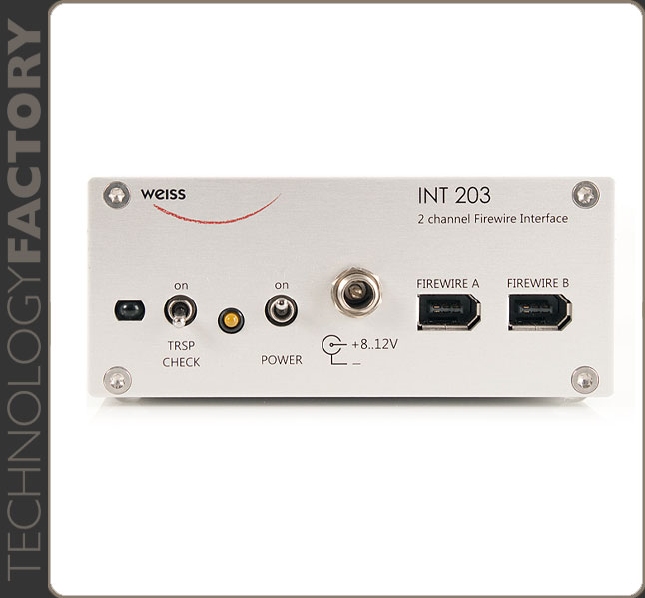

Digital Inputs
- Two Firewire 400 connectors (also serve as output with the INT203).
- RCA connector (INT203 only).
- XLR connector (INT203 only).

Digital Outputs
- Two RCA connectors (INT203 only one).
- Two XLR connectors (INT203 only one).
- Word-length up to 24 bits.

Synchronization
- Sampling frequency is generated internally.
- INT203: Synchronization can be supplied via the RCA or XLR inputs.
- Supported sampling frequencies: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, and 192 kHz.

DSP Algorithms
- Volume control.
- Absolute polarity control.
- Bit transparency checking.

Dimensions
- INT202 and INT203
- Depth: 10.5 cm / 4.13 inches
- Width: 10.5 cm / 4.13 inches
- Height: 4.4 cm / 1.73 inches
- Height with feet: 4.7 cm / 1.85 inches

- IR Remote Control (optional purchase)
- Depth: 2.1 cm / 0.83 inches
- Width: 4.5 cm / 1.78 inches
- Height: 16.6 cm / 6.53 inches
