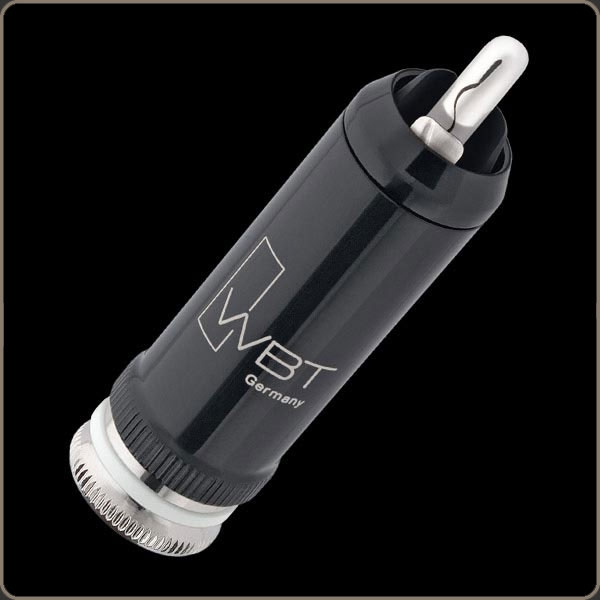

WBT-0152 Ag

WBT-0152 Ag

RCA Plug Silver for cables up to 10,8mm soldering

WBT-0152 Ag
85,40 Price include 21% VAT Price exclude VAT € 70,58
AVAILABILITY1 WEEK
- A new (2007) version of the WBT-0150 connector.
- Improved to utilize the nextgen™ insert.
- Contacts utilize passivated pure fine silver.
- The body is constructed with brass and then platinum plated to give a nice asthetic appeal.
- The central contact assembly is made of Ultramid® and the negative contact uses Dyneon™.
- The barrel is comprised of brass and finished in a glossy piano black color.
- A characteristic impedance of 75 ohms makes this a perfect match for digital audio and video.
- The maximum size conductor that can be used is 1.5mm² / 16-17 AWG.
- Maximum diameter of cable with dielectric is 9.1-11.3 mm² / 0.358-0.445 inches².
- The barrel is offered in black only.
