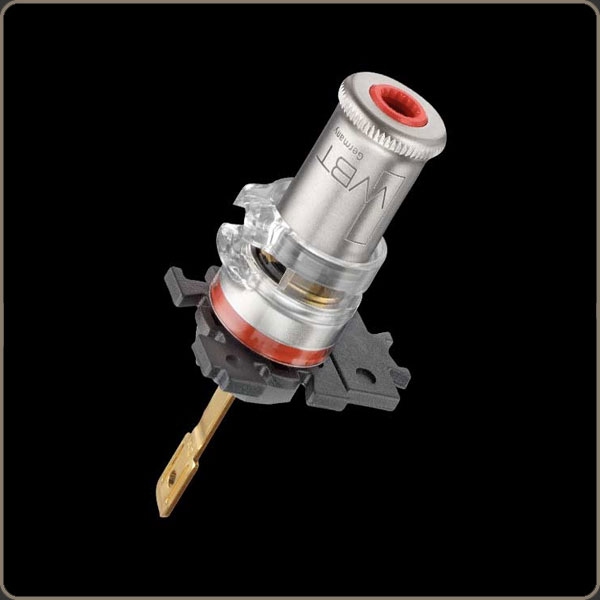

WBT-0710 Cu mC

WBT-0710 Cu mC

Binding Post Nextgen soldering / Flat push-on cable shoes

WBT-0710 Cu mC
51,10 Price include 21% VAT Price exclude VAT € 42,23
AVAILABILITY1 WEEK

- Signal conductor made of high-purity copper
- CE and IEC compliant
- Casing made of glass fibre and mineral reinforced plastic
- Surface protection of the signal conductor by means of 24 carat direct gold plating (nickel-free)
- Max. constant current 30 A, peak current 200 A
- Twist-proof mounting
- Puzzle plate system

Specifications
- Conductor cross section (max.): outside: 10 mm² (7 AWG), inside: 4 mm² (11 AWG)
- Connection technology: outside: 4 mm banana plug, spades (6 - 8 mm spade), crimping, inside: soldering or 6.3 mm flat push-on cable shoe
- Wall thickness: from 0.9 to 6.5 mm (from 4.5 mm without the puzzle plate)
