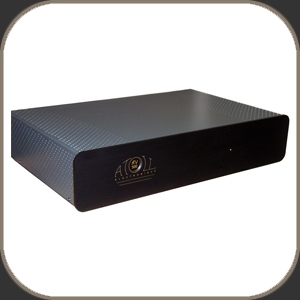

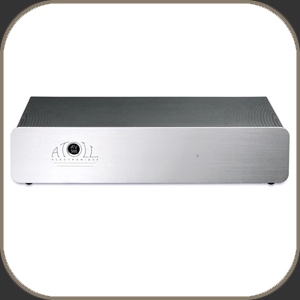

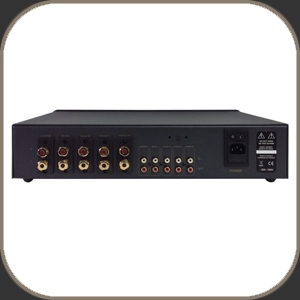

Atoll AV500

5 Channel Power Amplifier 5x 85 Watt

Atoll AV500
Atoll AV500
Atoll AV500
Atoll AV500
1.030,00 Price include 21% VAT Price exclude VAT € 851,24
Features
- Aluminium front panel of 4 mm
- Complete steel chassis of 1,5 mm
- Fully symmetrical stages with discrete components
- Single pair of MOS-FET transistors per channel on outputs
- Double 330VA toroïdal transformers

Specifications
- Power Wrms/channel/8 Ω: 5×85 W / 2×100 W
- Power Wrms/channel/4 Ω: 5×100 W / 2×140 W
- Supply (VA): 660 VA
- Total of capacitors (µF): 73 000
- Inputs: 5
- Input Impedance (kΩ): 47 kOhms
- Sensibility (mV): from 1,58 V to 1,77 V
- Distortion at 1 kHz: 0,005 %
- Bandwidth: 5 Hz – 200 kHz
- Signal/noise ratio (dBA): 100 dB
- Weight (kg): 12 kg
- Dimensions (mm): 440x90x270
