Atoll SDA100

All in One: Streamer, DAC and Amplifier

Atoll SDA100
Atoll SDA100
Atoll SDA100
Atoll SDA100
Atoll SDA100
Atoll SDA100
DISCONTINUED
AVAILABILITYN/A
Streamer
All audio files linked to the network can be read: FLAC/WAV up to 24 bits/192kHz, ALAC, AIFF, MP3. Displays of all information’s (covers, files names, time…) “gapless” system (uninterrupted playback of consecutive audio tracks)

DAC & Pre-amp / connecting
- 2 USB « A » Inputs (1 front & 1 rear) up to 24 bits/192kHz
- 1 USB « B » (asynchronous 24 bits/192KHz)
- 1 Coaxial SPDIF (24 bits/192KHz)
- 1 Optical SPDIF (24 bits/96KHz)
- 2 Stereo RCA analog Inputs
- 1 RJ45 network link
- 1 Wifi antenna
- 1 Stereo RCA analog Output
- 1 Trigger 12V output
- 1 headphones Output (on front panel)
- 1 pair of terminal Outputs

Internet Radio
- Internet radios (MP3 or HD) with vTuner system: choice in 15000 stations, 120 countries, 56 genres, podcasts… –
- Radio’s logos displays and all information’s available (titles, artists…)
- 1 Bluetooth® receiver (I2S interfaced to the PCM5102)

Amplifier
- Specific transformer for power stages
- Power (WRMS/8 Ohms): 2*60W
- Power (WRMS/4 Ohms): 2*70W
- Power supplies: 160VA+30VA

End users
- 3,5″ QVGA TFT color display
- All functions available from the front panel and the remote control
- Serial remote control (volume control, Inputs selection, web radio setup…)

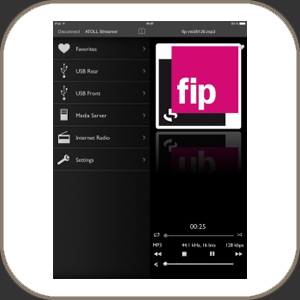

- Control with a free downloaded Apple® or Androïd® app.

The streamer includes DLNA and Upnp protocole that allows direct streaming from some different apps.
- Streaming Qobuz/Tidal with Mconnect (Apple & Android)
- Streaming Qobuz/Tidal with BubbleUPnP (Android)

Audio specifications
- Converter: PCM5102 (SNR: 112dB)
- Symmetrical audio stages with discrete components polarized in AB class
- MOSFET power transistors
- Analog volume control (with commutated resistors) with possible By-Pass
- MKP audiophile capacitors armored in an aluminum enclosure
- 1,5mm steel chassis
- Aluminum front panel (black or silver) of 4mm
- Dimensions: 440*290*90 mm

Specifications
- Power supplies (VA): 30 + 160 VA
- Total of capacitors (µF): 44 618 µF
- Power Wrms/channel/8Ω: 2*60 W
- Puissance Wrms/channel/4Ω: 2*80 W
- Dynamic: 112 dB
- Input Impedance: 330 kOhm
- Distortion at 1kHz: 0,005%
- Bandwidth: 5Hz – 100kHz
- Rising Time: 2 µs
- Sensibility: 450 mV
- Signal/Noise Ratio: 100 dBA
- USB-B Input: Asynchronous 24bits/192kHz
- DAC Converter: Burr-Brown PCM5102

USB driver
To use the USB-B asynchronous input, you need to download this driver on your computer using Windows software. This is not requisite on iOS or Linux systems.
