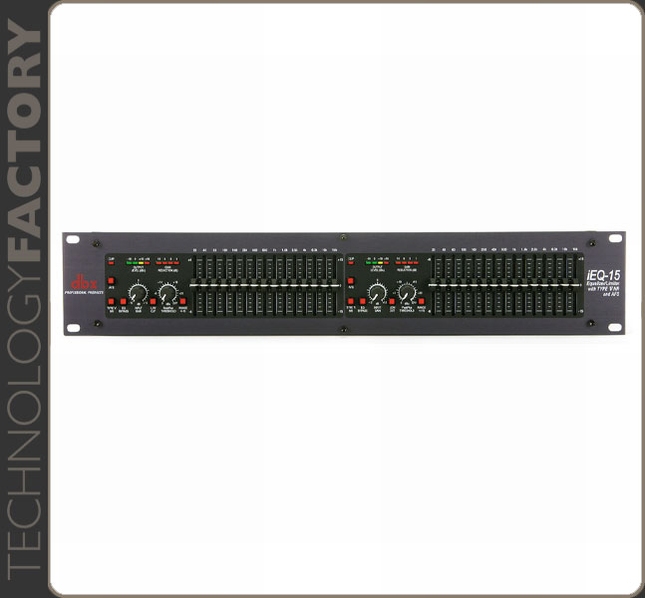

DBX iEQ15

Dual 15-Band Graphic EQ with Type V NR and AFS

€ 759,00 Price include 21% VAT Price exclude VAT € 627,27

AVAILABILITY: N/A

With an EQ heritage that has produced countless industry standard patents and dates back more than 30 years, the dbx iEQ-31 easily lives up to the dbx legacy of uncompromised sonic integrity. In addition to unsurpassed equalization specs, the iEQ-15 also offers the built-in necessities which include AFS™ feedback Suppression, Type V™ noise reduction and PeakStopPlus® limiting. Besides including two 15-band channels of 2/3-octave equalization, the iEQ-15 also offers +12 dB input gain range; switchable +6 or +15 dB boost/cut range, 40mm faders, XLR, 1/4'' and Euroblock inputs and outputs, nonconductive nylon sliders; and an intuitive user interface with comprehensive output and gain reduction metering. As always, the inevitable result of our meticulous attention to detail and top-quality componentry is exceptional sound, performance, and reliability. The iEQ series represents a major step forward in the performance of EQs. The iEQ series is now able to offer state-of-the-art digital EQ performance and specs with an analog look and feel. From its amazing 10Hz to 22kHz frequency response, to its 113dB dynamic range and Advanced Feedback Suppression (AFS™), dbx proprietary Type V™ noise reduction and PeakStopPlus® limiting, the iEQ-15 offers out of this world specifications with a downto- earth price point. Sure to find a home in the studio, on tour and with installed sound venues, the iEQ-15 is destined to take its rightful place in the lineage of great dbx® signal processors that are the professional’s choice in signal processing. With such pristine design and quality, the iEQ-15 offers the maximum sonic flexibility in a straight forward interface and rock-solid construction.

Features

- Advanced Feedback Suppression (AFS™)

- Type V™ Noise Reduction

- PeakStopPlus® Limiting

- 2/3-octave Constant Q frequency bands

- Switchable boost/cut ranges of +6 or +15dB

- 18 dB per octave 40Hz low-cut filter

- +12dB input gain range

- XLR, TRS and Euroblock Inputs and Outputs

- Internal Toroidal Transformer

- Frequency Response of 10Hz to 22kHz

- Dynamic range of greater than 113dB

- User Power Up Features

- Relay Bypass for Power Failure System Protection

Specifications

Inputs

- Connectors: 1/4” TRS, female XLR (pin 2 hot), and Euroblock

- Type: Electronically balanced/unbalanced, RF filtered

- Impedance: Balanced 40kO, unbalanced 20kO

- Max Input Level: +22dBu balanced or unbalanced

- CMRR: >40dB, typically >55dB at 1kHz

Outputs

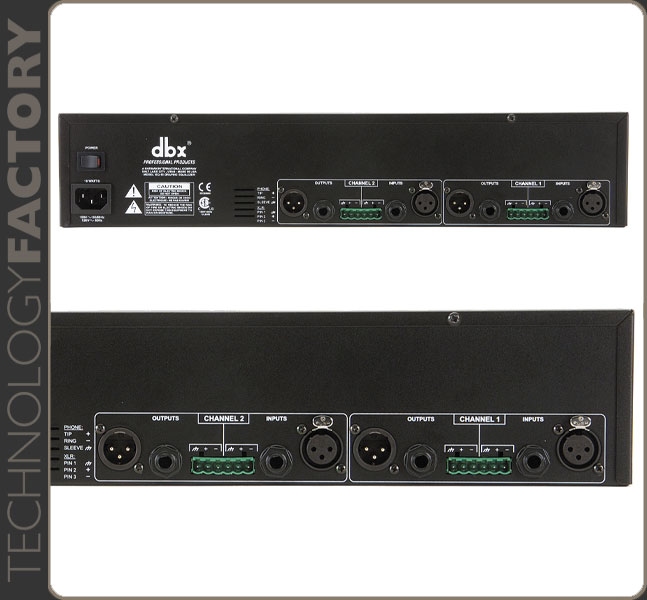

- Connectors: 1/4” TRS, male XLR (pin 2 hot), and Euroblock

- Type: Balanced/unbalanced, RF filtered

- Impedance: Balanced 120O, unbalanced 60O

- Max Output Level: +20dBu balanced/unbalanced into 2kOor greater

System Performance

- Frequency Response: 20Hz to 20kHz, +0.5/-0.25dB

- Dynamic Range: >113dB, “A” weighted

- THD+Noise: 0.003% typical at +4dBu, 1kHz

- Interchannel Crosstalk: <-80dB, 20Hz to 20kHz

- Noise Reduction: Up to 10dB of dynamic broadband noise reduction

- Digital Resolution: 24 bits

- Sample Frequency: 48kHz

- Latency: 2msec

Function Switches

- AFS™: Activates dbx AFS™ Advanced Feedback Suppression

- TYPE V™ NR: Activates dbx Type V™ Noise Reduction

- EQ Bypass: Bypasses the graphic equalizer section in the signal path

- Low Cut: Activates the 40Hz 18dB/octave Bessel high-pass filter Range

- Range: Selects either +/- 6dB or +/- 15dB slider boost/cut range

Indicators

- Output Level: 4-LED bar graph (Green, Green, Yellow, Red) at -10, 0, +10, and +18dBu

- Gain Reduction: 4-LED bar graph (all Red) at 0, 3, 6, and 10dB

- Type V™ NR: 1 LED: yellow, green or red

- EQ Bypass: 1 LED: red

- Clip: 1 LED: red

- Low Cut: 1 LED: red

- +/-15dB: 1 LED: red

Power Supply

- Operating Voltage: 120VAC 60Hz, 220-240VAC 50/60Hz

- Power Consumption: 17 Watts

- Mains Connection: IEC receptacle

Physical

- Dimensions: 3.5” H X 19” W X 7.9” D (8.9cm x 48.3cm x 20.1cm)

- Weight: 7.5 lbs.

- Shipping Weight: 8.5 lbs.
